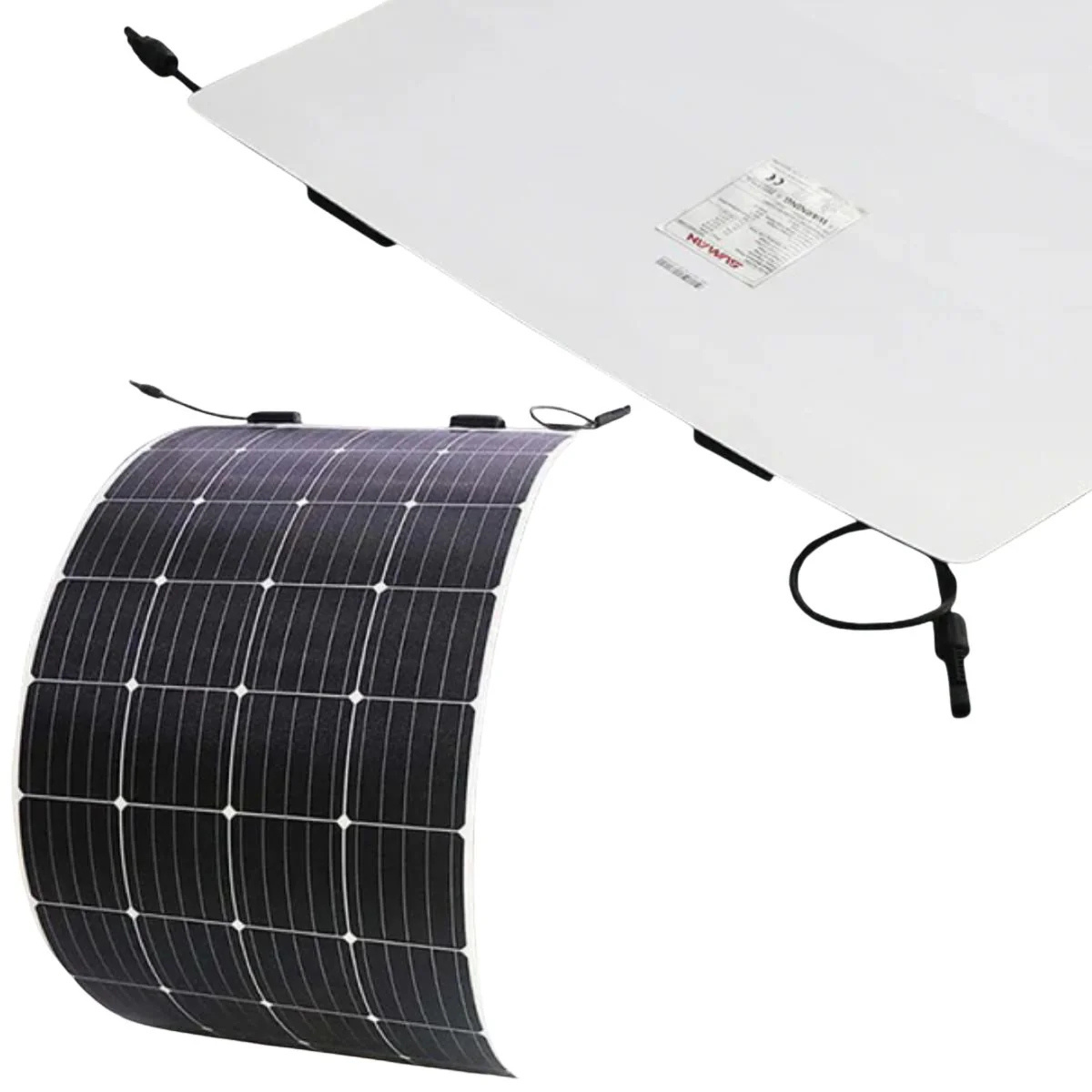

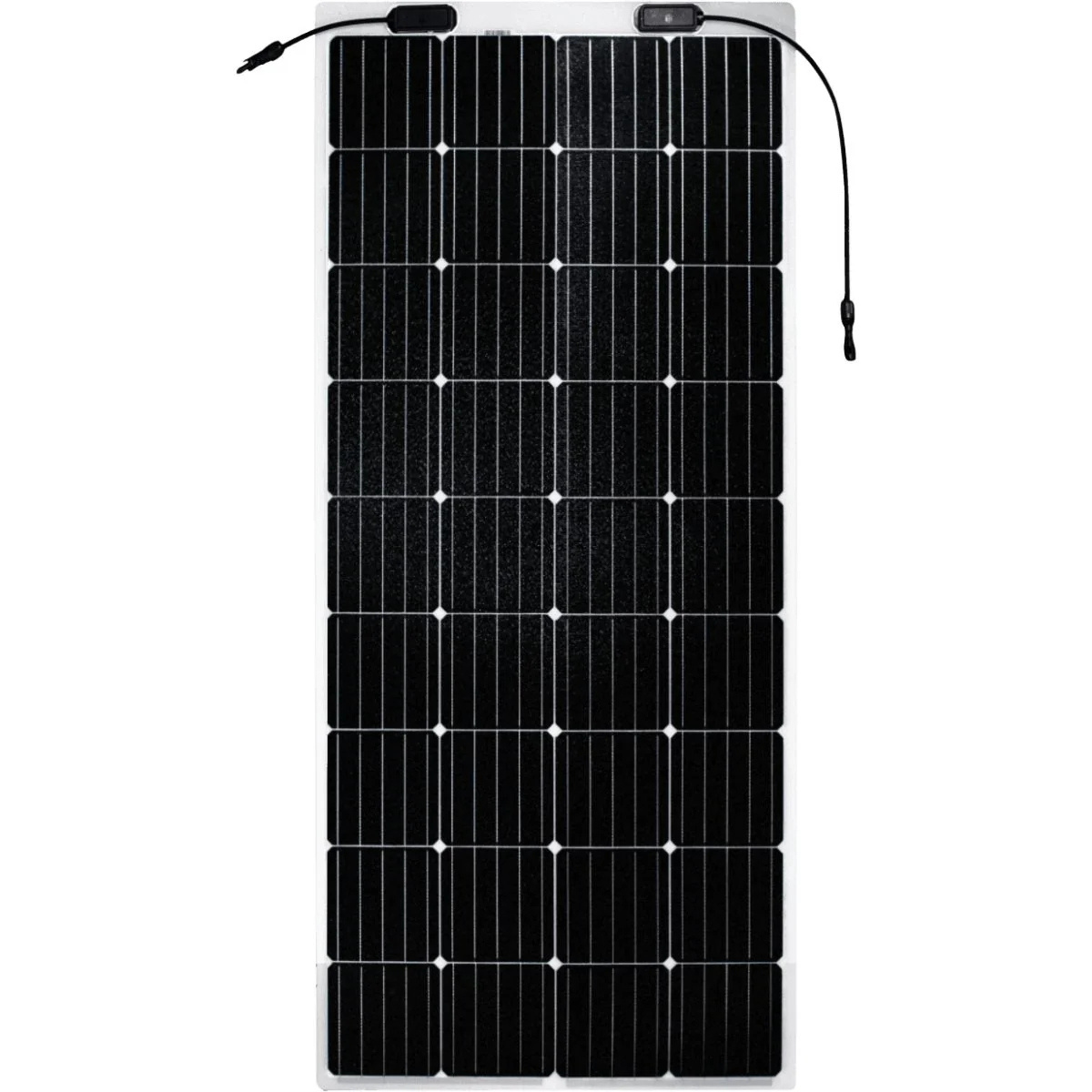

Sunman 175W Solar Panel 1504 x 673mm

The Sunman 175W Solar Panel 1504 x 673mm is an ultra-lightweight, glassless solar panel designed for effortless installation and reliable performance. Ideal for vehicles, boats, and roofs where weight, flexibility, and aesthetics matter, the Sunman 175W Solar Panel delivers efficient power without the need for traditional mounting hardware.

Features:

• Ultra-light design at just 3kg, around 70% lighter than traditional glass panels

• Seamless, low-profile appearance that integrates neatly with installation surfaces

• Quick Bonding technology allows fast installation with no roof penetration or mounting hardware

• Reduces installation time by up to 40%

• Durable glassless construction tested against PID, salt mist, and ammonia corrosion

• Designed to perform reliably in harsh environments

• 5-year warranty for peace of mind

Specifications:

Electrical Specifications

• Maximum Power (Pmax): 175W

• Maximum Power Voltage (Vmp): 19.5 V

• Maximum Power Current (Imp): 8.98 A

• Open-circuit Voltage (Voc): 23.9 V

• Short-circuit Current (Isc): 9.50 A

• Module Efficiency: 17.3%

• Operating Temperature: -40°C to 85°C

• Maximum System Voltage: 600 V DC (IEC)

• Maximum Series Fuse Rating: 20 A

• Application Class: Class A

• Power Tolerance: 0 / +5 W

• STC: Irradiance 1000W/m², Cell temperature 25°C, AM 1.5

Mechanical Characteristics

• Model: SMF175F-4X09DW

• Solar Cell Type: Monocrystalline (6 inch)

• Number of Cells: 36 (4 × 09)

• Dimensions: 1504 × 673 × 2 mm

• Weight: 3.0 kg

• Backsheet: White

• Junction Box: IP68 rated

• Output Cables: 4.0 mm² photovoltaic cable (+)150 mm / (–)450 mm

• Connector: MC4 compatible

Note that Sunman panels are shipped directly from the supplier and can take an additional 2-3 working days.
