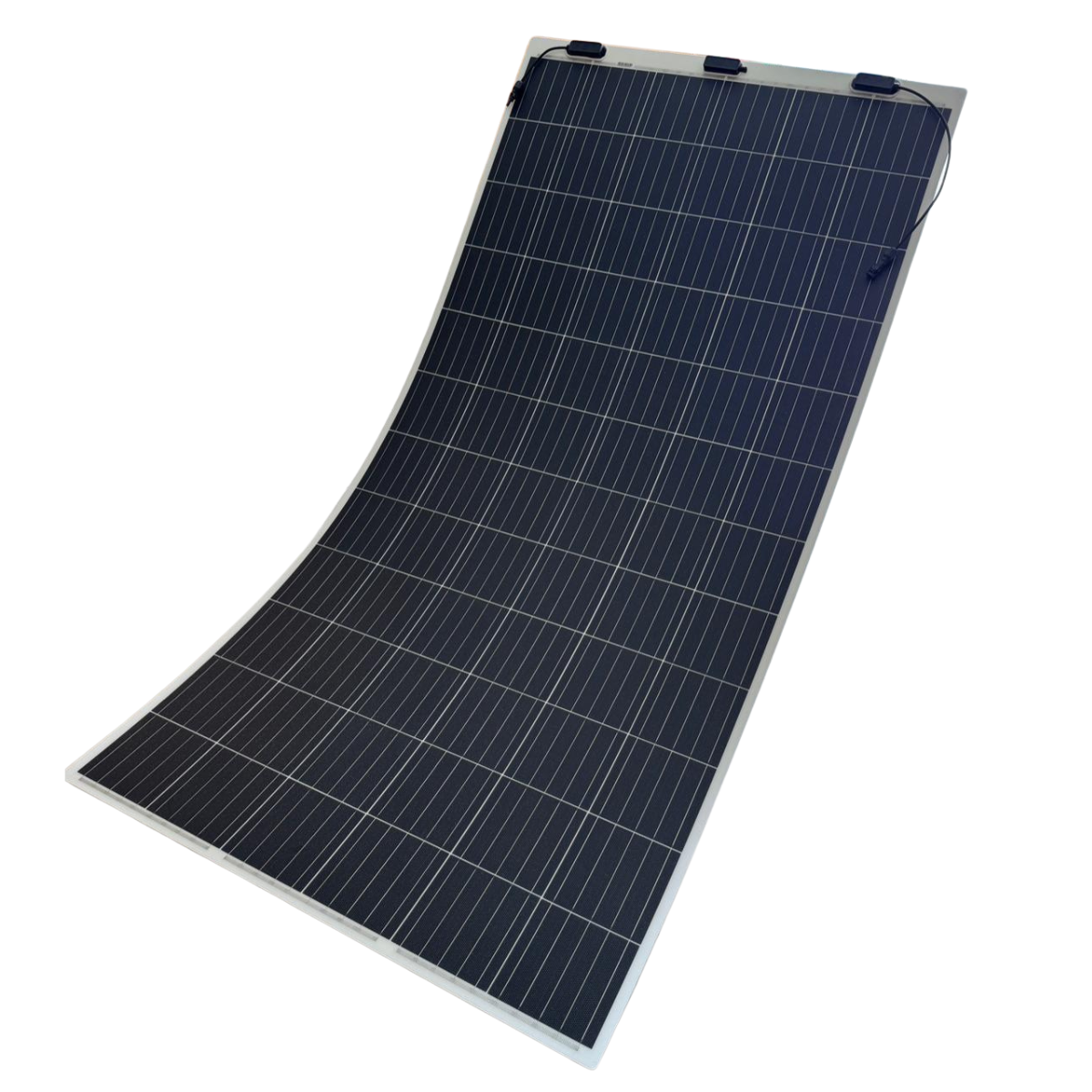

Sunman 375W Solar Panel 2031 x 1029mm

The Sunman 375W Solar Panel is an ultra-light, glass-free solar module designed for high-performance installations where weight and durability matter. Using monocrystalline half-cell technology, this panel delivers reliable power output while being up to 70% lighter than conventional glass modules. Its sleek design allows seamless integration with a variety of mounting surfaces, making it ideal for commercial, residential, and alternative mounting applications.

Features:

• Ultra-light glass-free design – up to 70% lighter than traditional panels
• Monocrystalline half-cell technology for improved performance
• Seamless integration with installation surfaces
• Durable construction tested to conventional module standards
• Corrosion-resistant black anodized aluminium frame
• Suitable for residential and commercial installations
• 5-year product warranty

Specifications:

Electrical (STC – 375W Model):

Maximum power (Pmax): 375 W
Maximum power voltage (Vmp): 40.2 V
Maximum power current (Imp): 9.33 A
Open-circuit voltage (Voc): 48.6 V
Short-circuit current (Isc): 9.86 A
Module efficiency: 17.9%
Operating temperature: -40°C to 85°C
Maximum system voltage: 1000 V DC (IEC)
Maximum series fuse rating: 20 A
Application class: Class A
Power tolerance: 0 / +5 W

Mechanical:

Solar cell type: Monocrystalline silicon (158.75mm)
Number of cells: 72 (6 × 12)
Dimensions: 2031 × 1029 × 5.6 mm
Weight: 6.9 kg
Frame: Black anodized aluminium alloy
Backsheet: White
Junction box: IP68 rated
Output cables: 4.0 mm² photovoltaic cable (+)150 mm / (-)450 mm
Connector: Dawning C1
